Electronic Weighing Scale
|
| |
| Types of Electronic Weighing Scale |
|
|
1. INDUSTRIAL CRANE WEIGHING SCALE |
| |
 |
| |
Features
- Maximum Capacity: 1T, 2T, 3T, 5T, 15T, 20T & 30T.
- Readability: 1 Kg, 2 Kg & 5 Kg.
- Large LED display for excellent visibility.
- Heavy Duty ZEMIC (USA) Make Single Block & “S” Type Load Cell.
- High Tension Hook and shackle.
- Accuracy: compatible to OIML class III.
- Industrial Keypad for (Tare – Zero & Other Setting).
- Alluminium Casting or Metal Body with Power Coat Painted.
- Models with high temperature shield available.
- Gravity acceleration correction; so, can be used at anywhere in the world.
- Accuracy is verified by three bits so, very much reliable.
- Tare remote controller (Optional).
- Inbuilt Rechargeable Battery (6V 4.5Ah).
- RS 232 Comport for Interfacing System (Optional).
- Handy Thermal Printer Facility (Optional).
- Wireless Display (Optional).
|
| |
Above Weighing Scale Application For |
Hydra Crane - Safe Load Limiting - Crane Weighing - Fabricators - Ship Building Industry - Tension Checking
|
|
2. INDUSTRIAL FLOOR WEIGHING MACHINE
(Four Load Cell Based)
|

|
| |
FeaturesAll Steel construction with industrial Powder Coating |
- PIPE, ANGLE or "C" CHANNEL Based Platform Structure.
- High Precision ADI ARTECH (USA) Make Load Cell.
- Sturdy MS structure provides equal Load distribution.
- High Resolution Load Cell with Over Load stoppers and Transport Protection.
- Large LED Display with a optional of remote display.
- Counting mode, percentage weighing, Wt accumulation.
-
Platter construction options can be SS/MS Checkered.
-
220V AC/built-in 6V rechargeable battery 50hrs backup.
-
Available in Single load cell and 4 load cell design.
-
150% Overload protection.
-
Options: RS-232 interface for computer interfacing.
-
Options: Printer output for direct printing on printer.
-
Options : Wireless Weighing Indicators
-
Options : Attach or Loose Pole for Indicator
|
Available Platform Size: |
-
400 X 400 mm
-
500 X 500 mm
-
600 X 600 mm
-
750 X 750 mm
-
900 X 900 mm
-
1000 X 1000 mm
-
1200 X 1200 mm
-
1500 X 1500 mm
-
1500 X 1800 mm
|
3. TABLE TOP SERIES
(Available Metal & ABS Body)
|
|
 ![]() |
Features
|
-
The Ultimate Performance & Price Package
-
ABS, S.S. & Power Coated Metal Body
-
Stainless Steel pan
-
Standard Display - Front, Rear or Pole
-
Red/Green LED Display (0.56" - 0.75")
-
Support for thermal and dot matrix printers
-
Piece counting, Check weighing & Liter Facility
-
Auto Off Function for battery backup
-
Backup of 40 hrs supported with a rechargeable battery.
|
SPECIFICATION
|
| |
| Capacity |
3 Kg |
5 Kg |
15 Kg |
30 Kg |
| Readability |
0.1 g |
0.5 g |
2 g |
5 g |
| Pan Size |
175 X 225 mm |
175 X 225 mm |
200 X 225 mm |
250 X 300 mm |
| Display |
Choice of Red / Green LED (0.56” high) |
| Power |
220-240V AC; 50Hz OR 6V, 4.2Ah Rechargeable battery |
| Temperature |
+10 to +50 oC |
| Optional |
RS-232 Connection |
|
| |

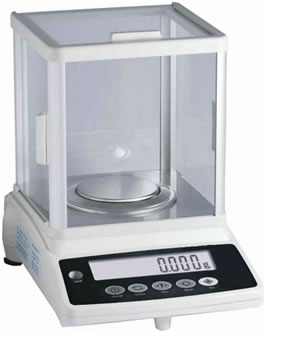

4. PRECISION SCALE |
| |
 |
| |
Features
|
- Multiple Weighing units & precise counting function
- Units can be enabled or disabled as per country regulations
- Full Tare Rang, Auto Zero mode
- Price Computing Function.
- Remote Display suitable for desktop mounting.
- Low Battery Indication, Dummy Zero Facility.
- Draft Shield to reduce errors due to air movement.
- Mains / rechargeable 6VAH battery operated. 50hrs backup.
- RS232 / direct printing option. Continuous / command control.
|
SPECIFICATION
|
| |
| Capacity |
100 gm |
300 gm |
600 gm |
1000 gm |
| Division |
1 mg |
10 mg |
10 mg |
10 mg |
| Display |
0.5” Large LED Display RED, VFD Green |
| Platter(mm) |
70 Dia |
120 Dia |
| Accessories |
Remote Display Draft Shield Brass Wt 200g RS 232 Printer Interface |
|
|
